LiquiLevel FBS Guide Wire spring Tensioner Kit

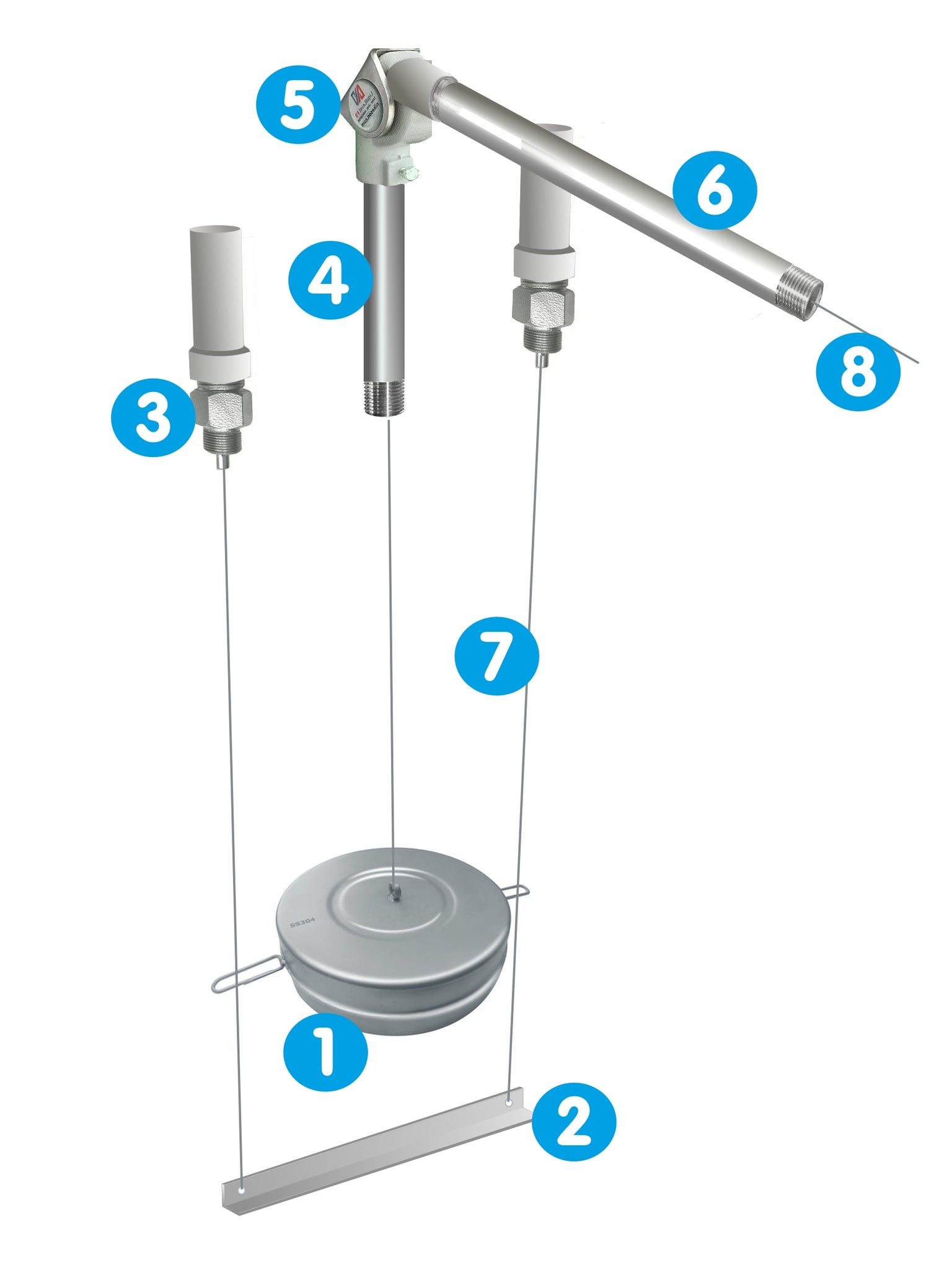

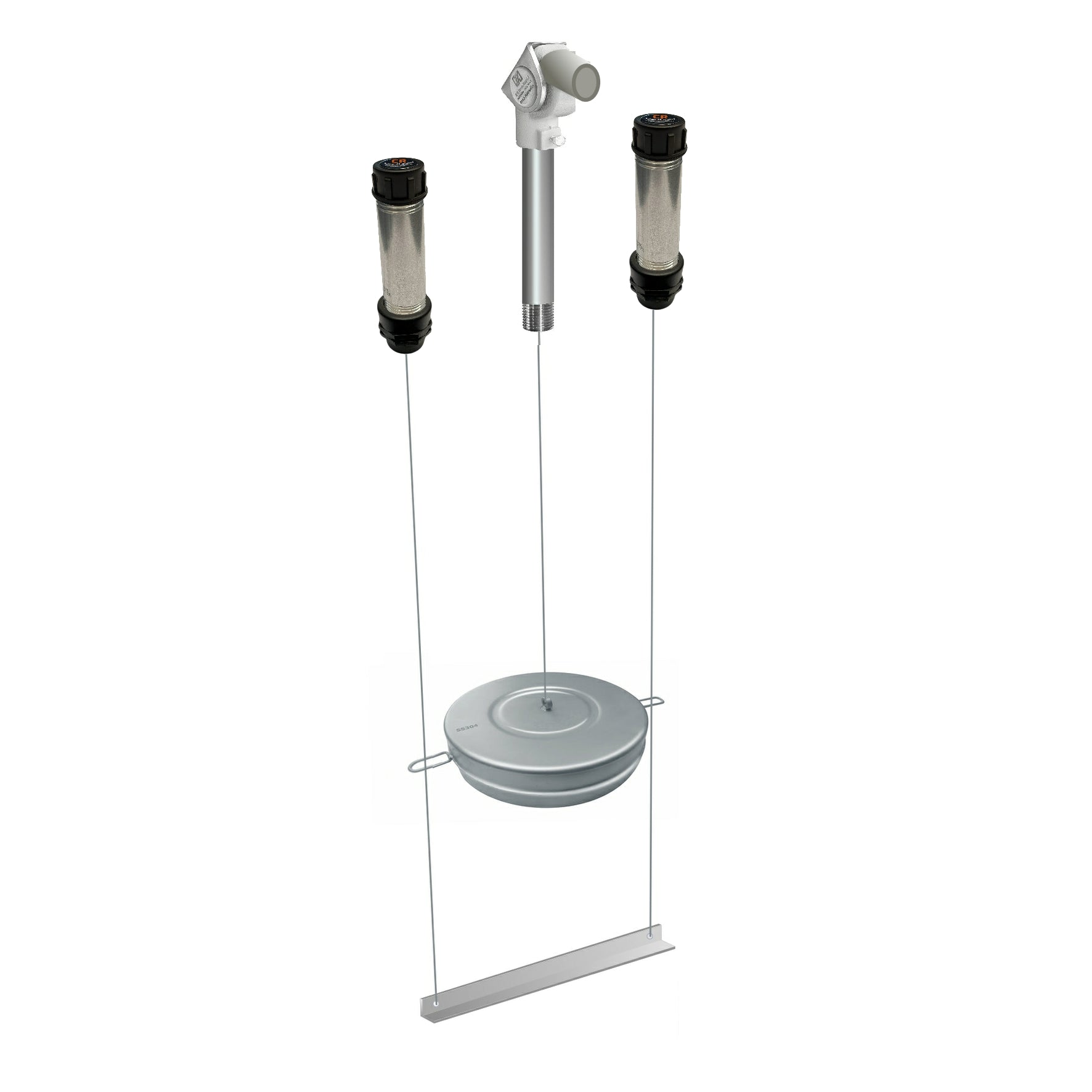

LiquiLevel FBS Spring Tensioner Kit is designed to keep the float plumb inside storage tanks, helping ensure accurate and reliable tank level monitoring.

As tanks are filled and emptied, liquid movement and turbulence can cause the float to move out of alignment. The spring tensioners help maintain the float’s correct vertical position, supporting consistent and dependable level measurements.

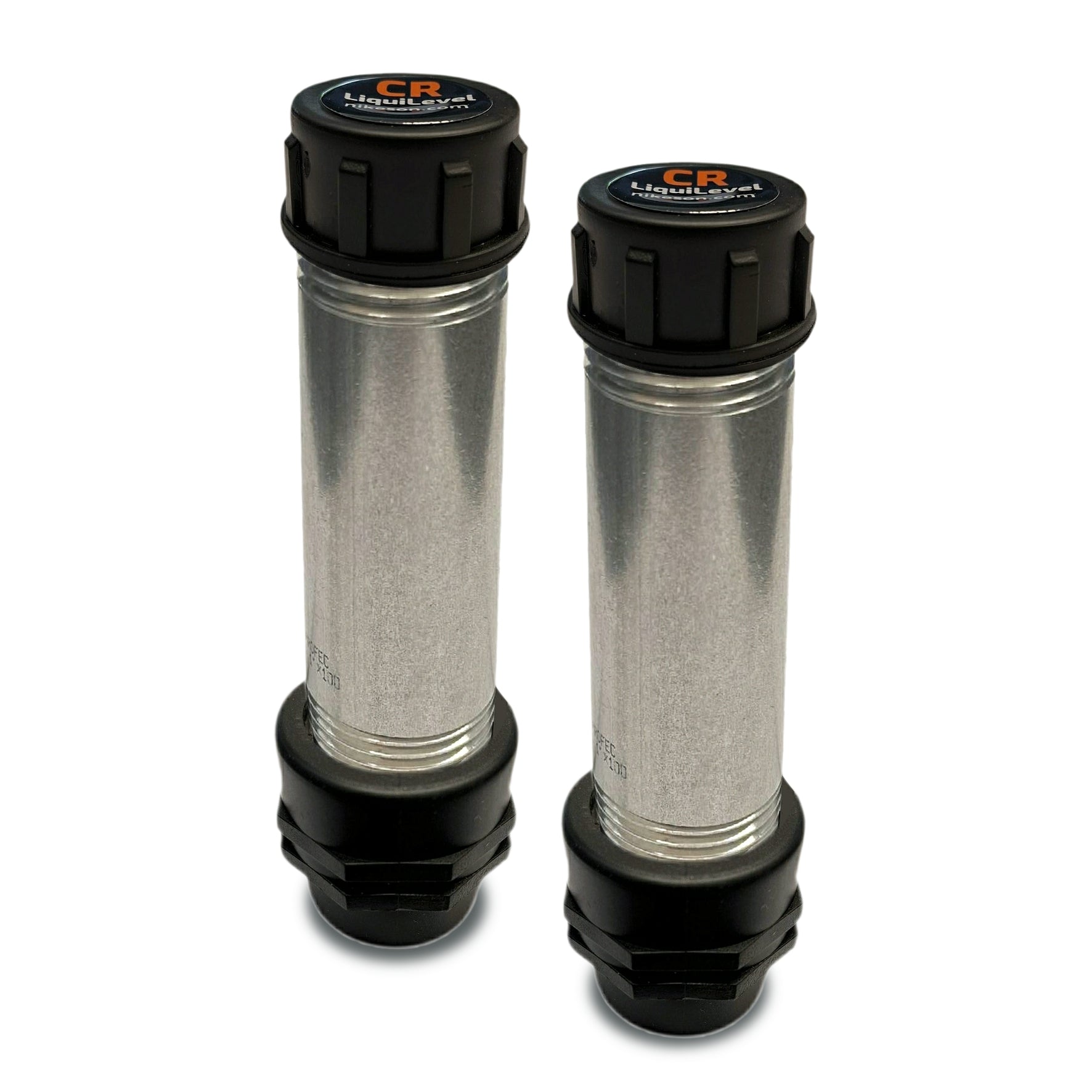

Each kit consists of two spring tensioners and is available with a 3/4" BSP pipe connection.

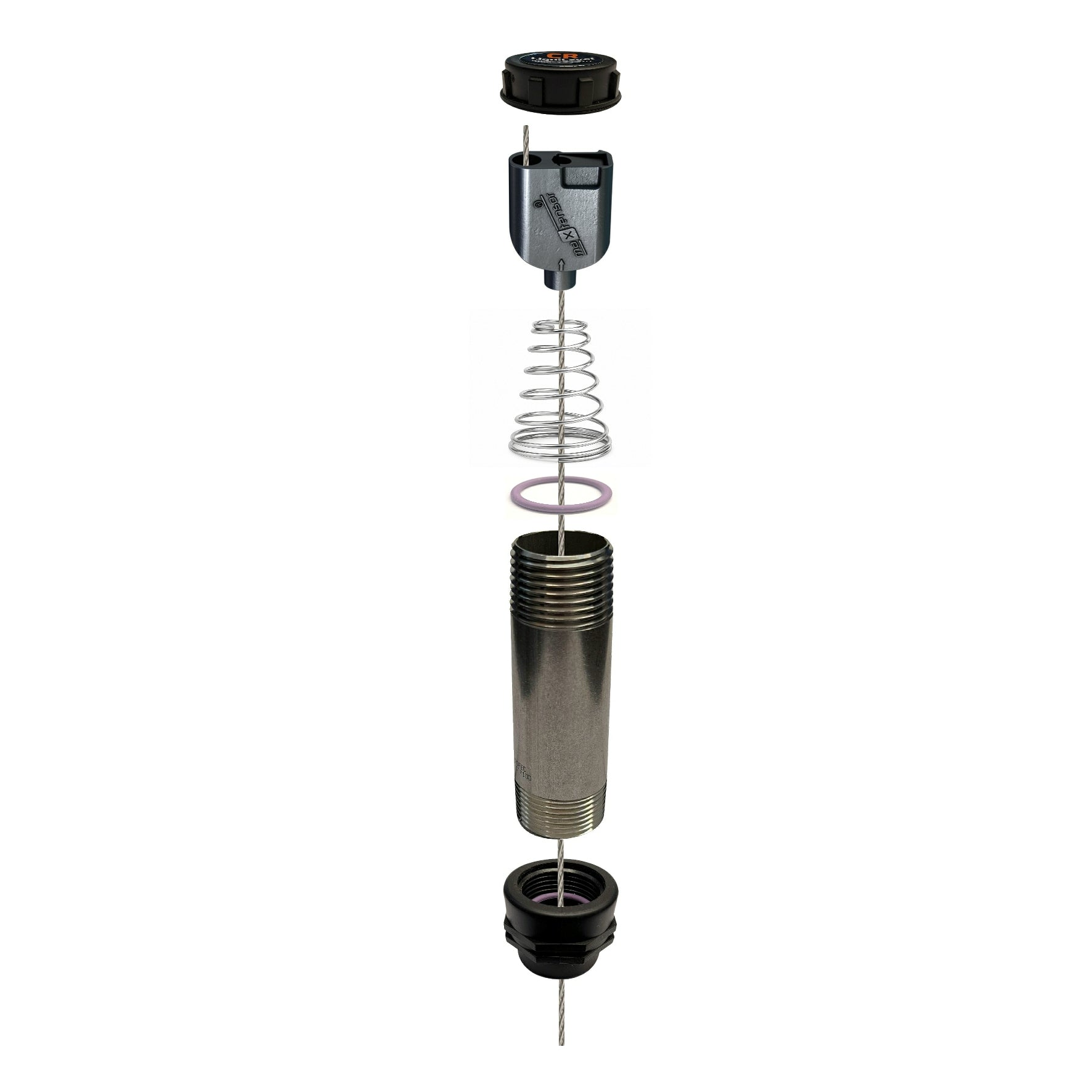

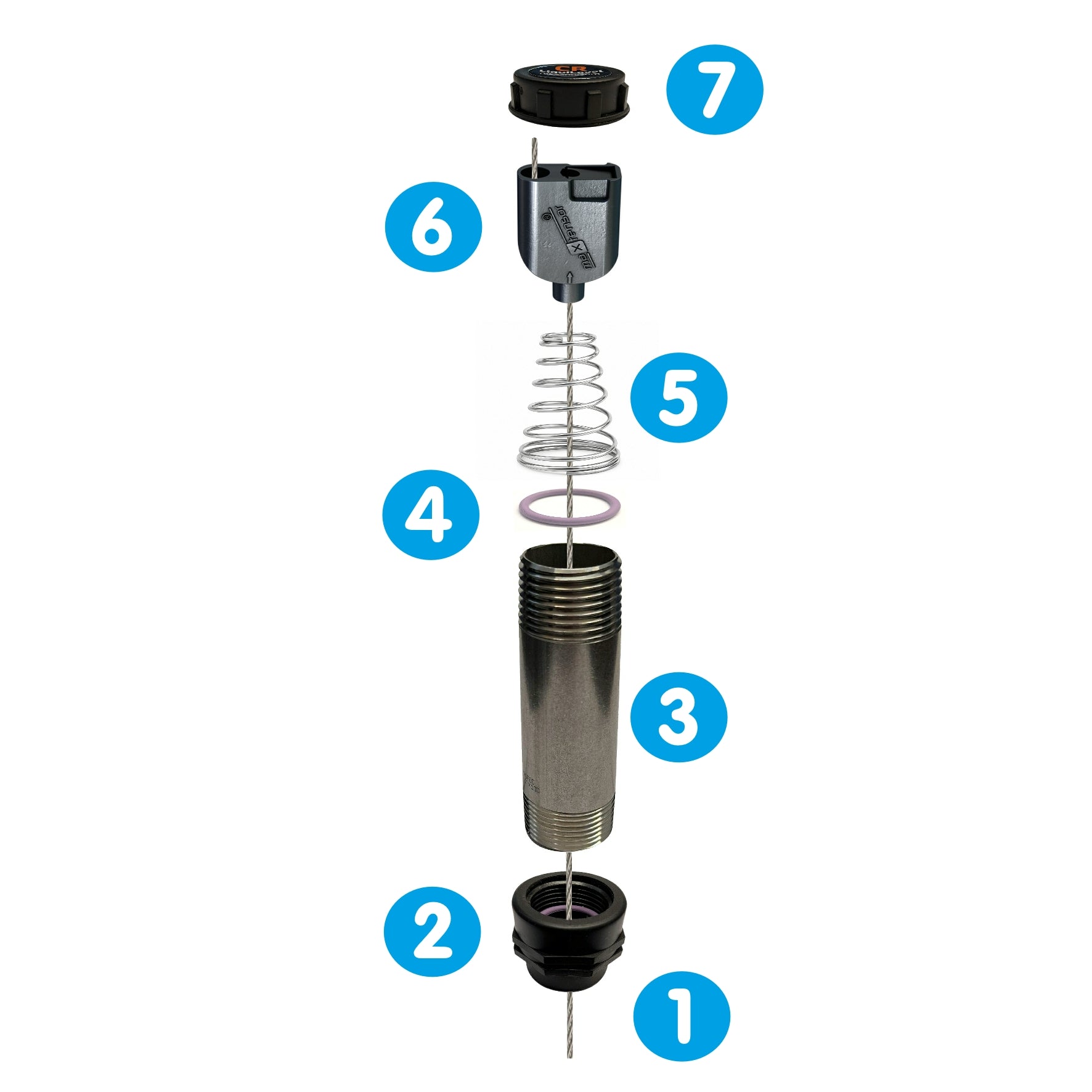

Exploded Diagram

1. 1.5 mm Stainless steel braided 7x7 wire (not included)
2. 3/4" - 1" BSP heavy duty Polypropylene reducing socket c/w self-seal O-Ring.
3. 1" BSP Stainless steel (SS303) x 100mm (4 inch) pipe nipple.
4. Self-seal O-Ring.
5. Stainless steel conical spring.
6. Wire tensioning unit.
7. 1" BSPF heavy duty Polypropylene End cap.

Benefits

• Durable stainless steel and polypropylene construction, offering good chemical resistance and reliable performance in demanding tank environments.

• Simple and quick to install with minimal tools required.

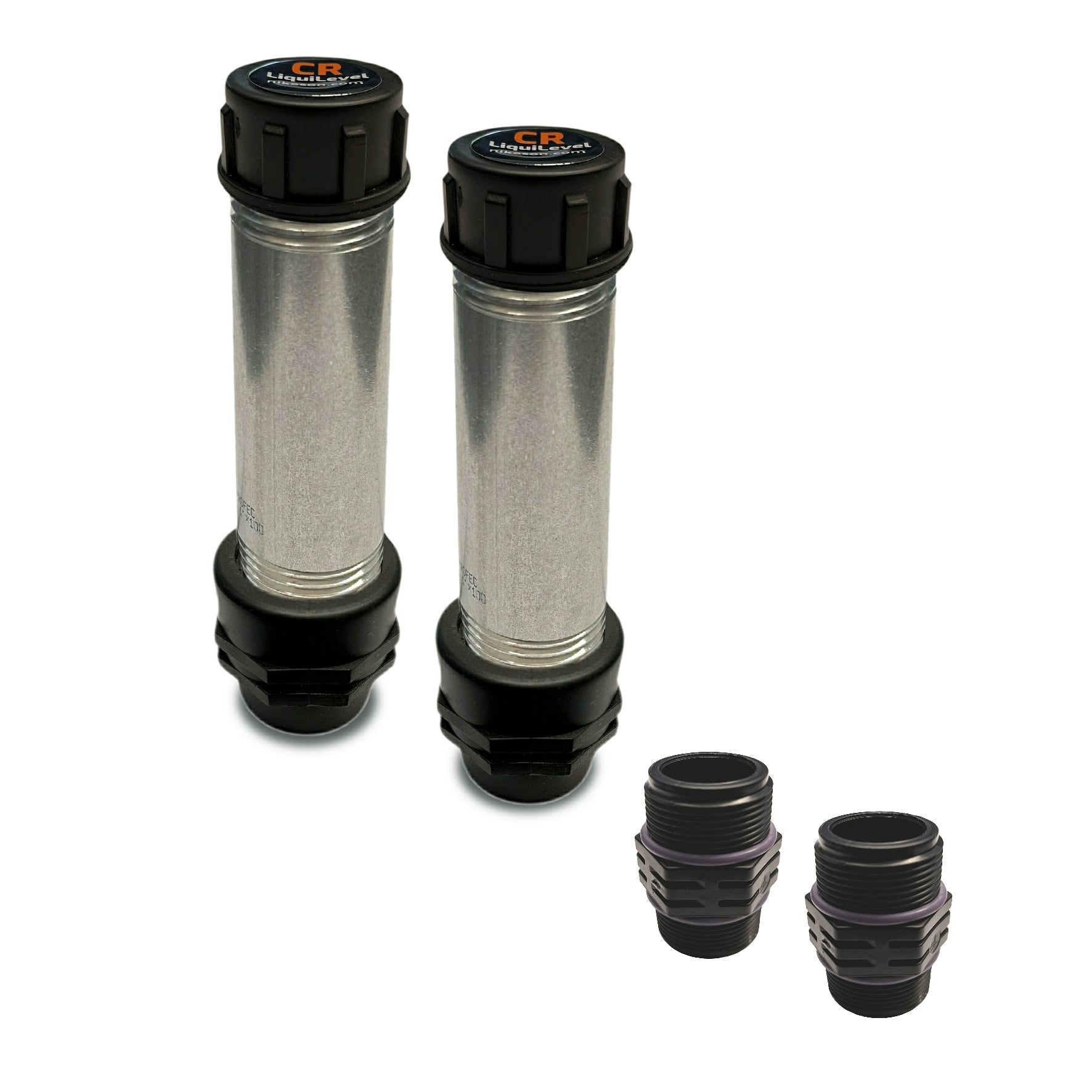

• 3/4" Male adaptors available to adapt Female threads to Male.
• Made in Sweden with high quality components
• Self-Sealing (vapour proof)
