Polypropylene Float with Magnet

For actuating monostable and bistable contacts.

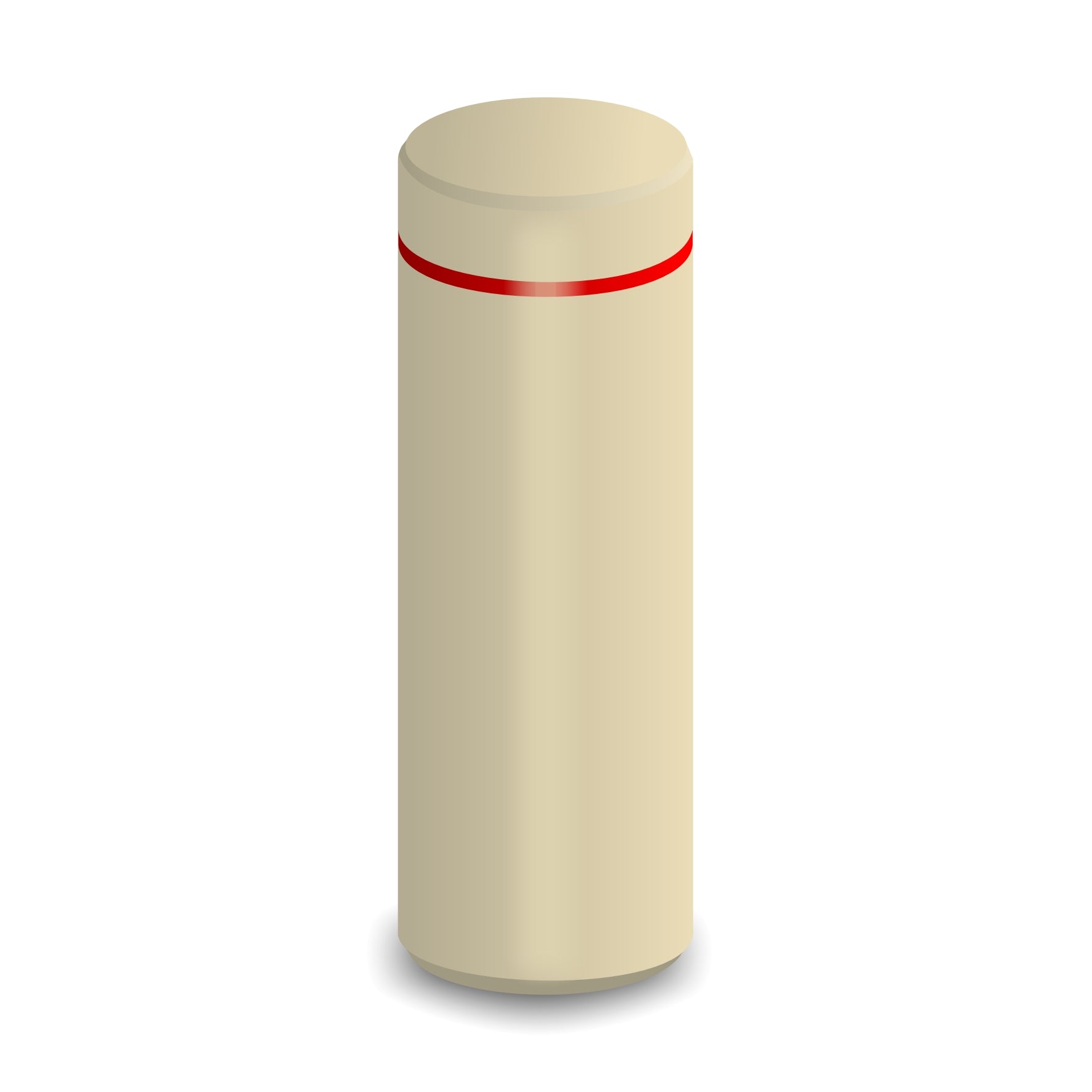

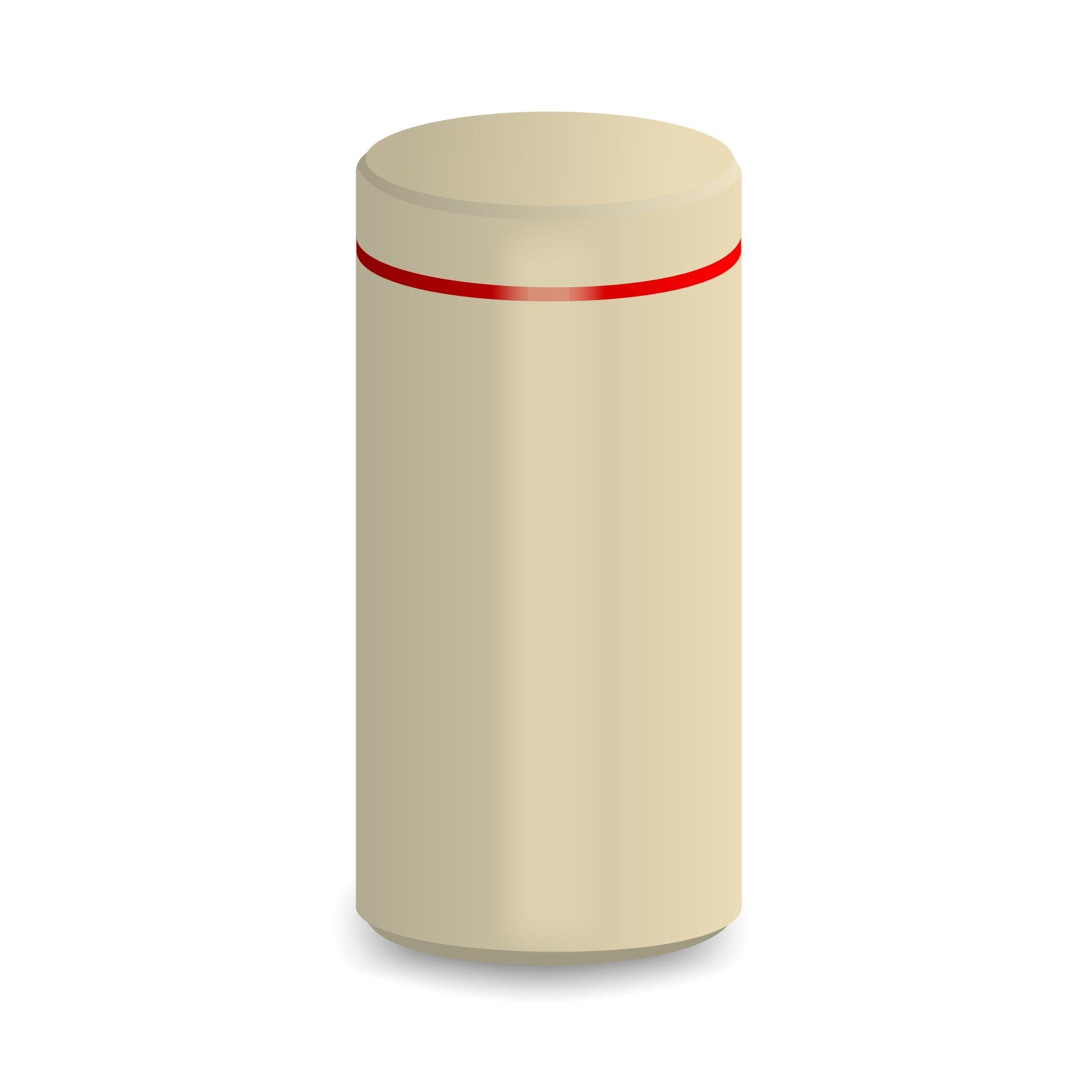

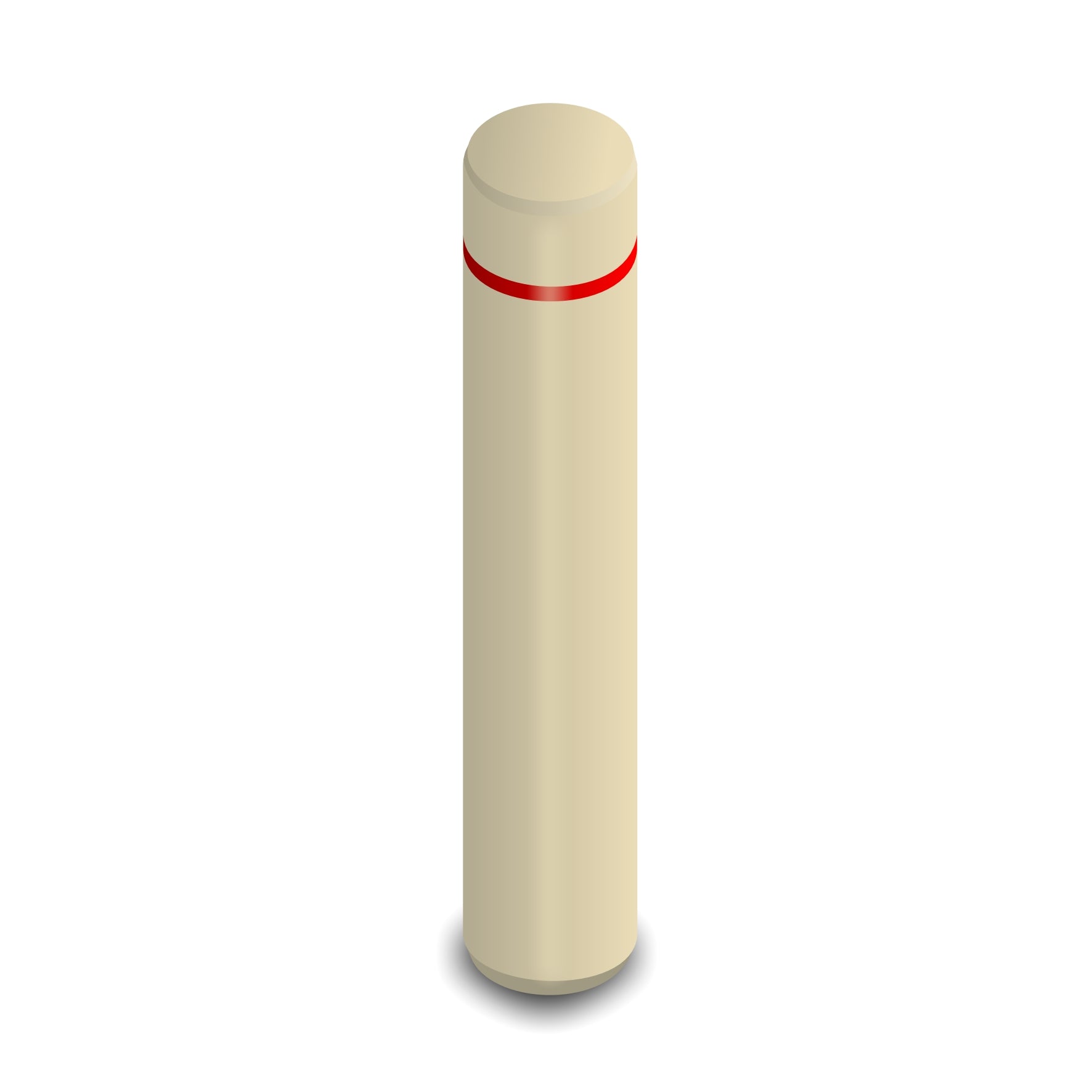

LiquiLevel CR Magnetic floats are suitable for visual tank level indicators and other bypass systems. The matching float must be chosen for the corresponding pipe diameter. The “0” mark represents “up”, the Red mark (ring) indicates the location of the integrated magnet (alternatively, the magnet can also be installed on the bottom.

The float serves as optical indication of the fluid level and actuates at the same time the infinitely variable contacts on the outside.

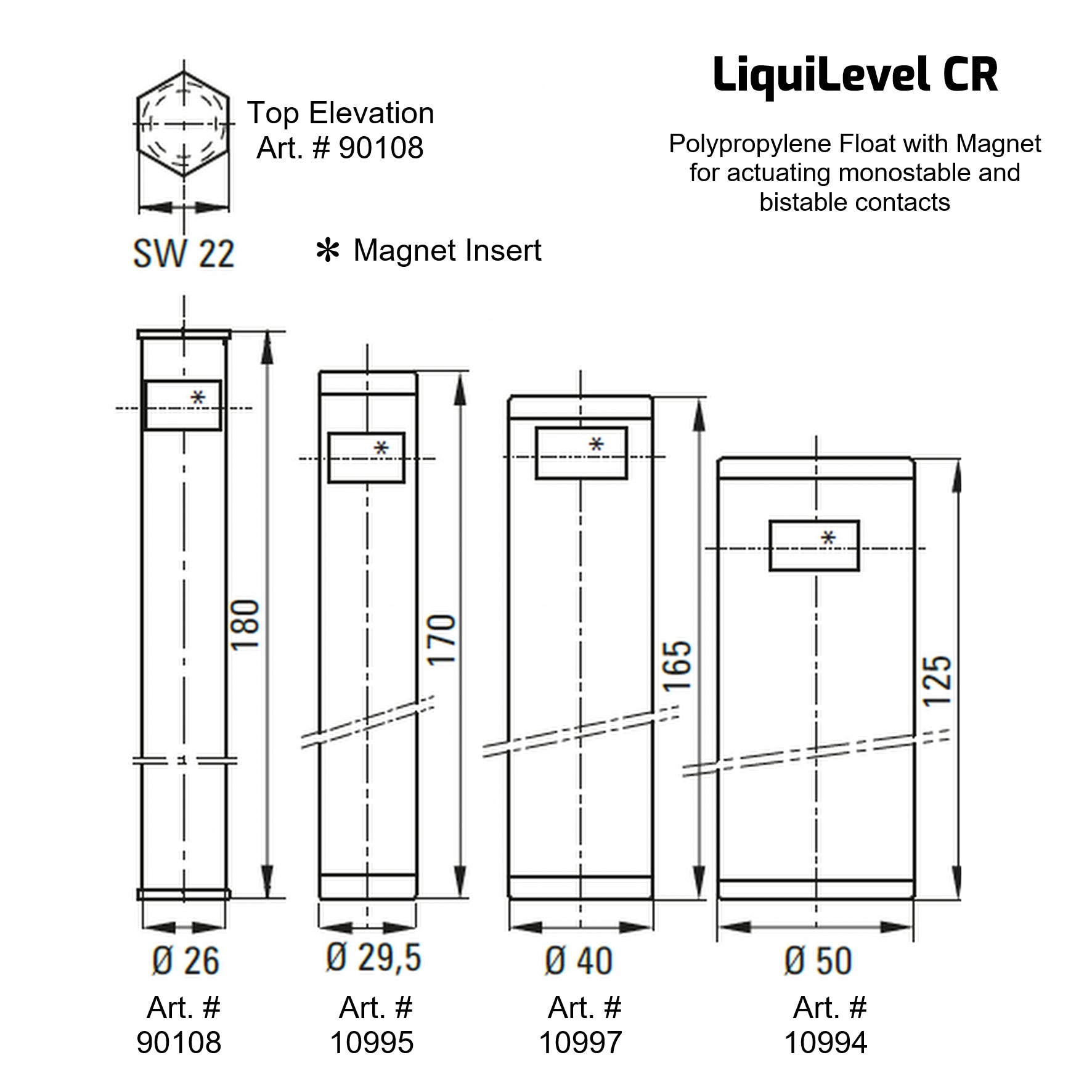

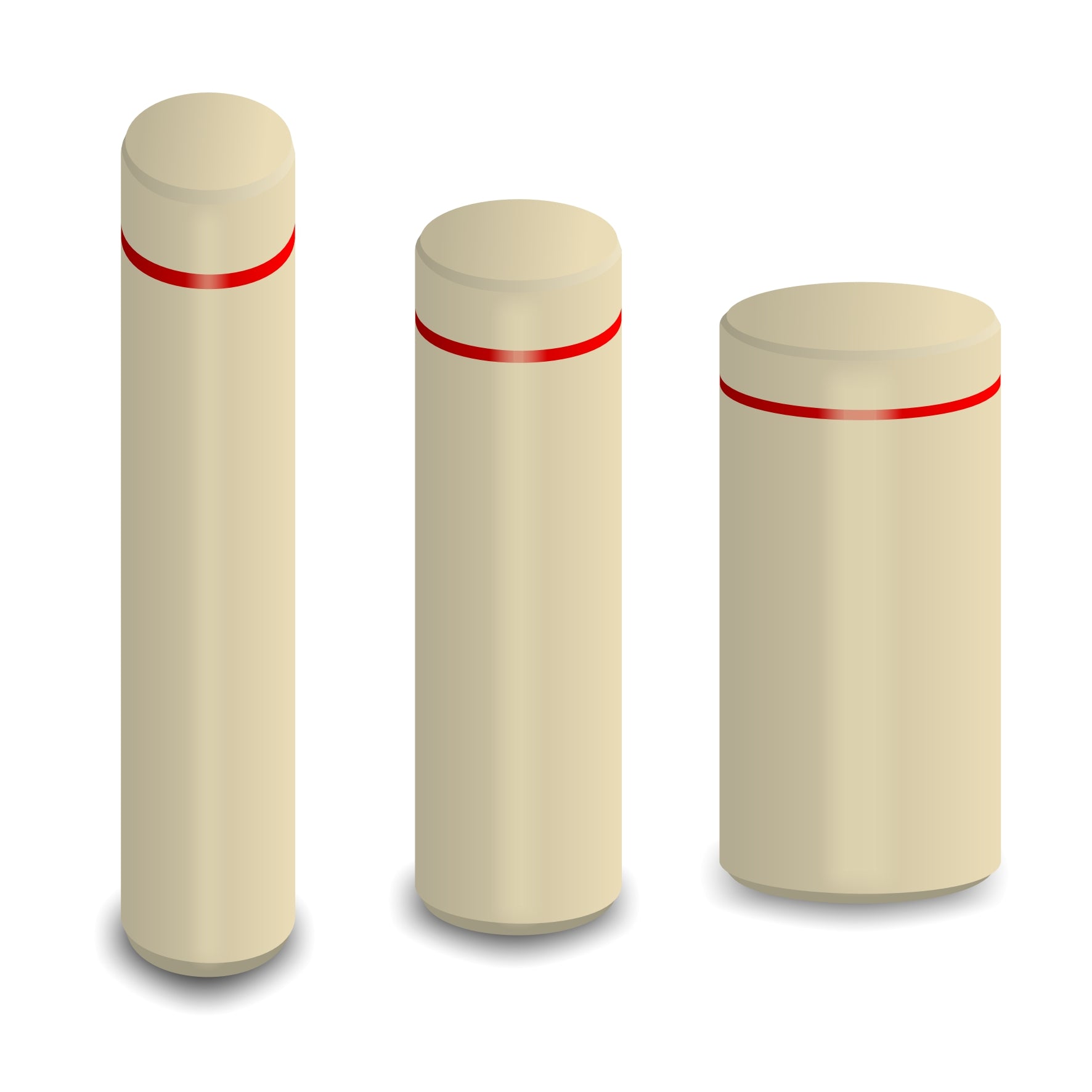

Technical Information - Variants

• 32. Exterior Ø 26 x 180 mm, for outside Ø 32 u. 34 mm weight approx. 38 gram
• 37. Exterior Ø 29,5 x 170 mm, for outside Ø 40 u. (PN16) weight approx. 62 gram
• 40. Exterior Ø 40 x 165 mm, for outside Ø 50 weight approx. 145 gram
• 50. Exterior Ø 50 x 180 mm, for outside Ø 63 weight approx. 156 gram

Medium density

• 32 : ρ = 0,95 g/cm³
• 37 : ρ = 0,95 g/cm³
• 40 : ρ = 0,85 g/cm³
• 50 : ρ = 0,80 g/cm³

LiquiLevel SG tank level gauges designed for visual level monitoring of storage tanks and vessels. Manufactured from PVC these gauges are used extensively for chemical and process applications. For more information on these gauges please contact us.

LiquiLevel CR Bistable switches are specifically designed for use with our Polypropylene floats for automation of alarms and switches etc. Click Here For more information on our switches.
